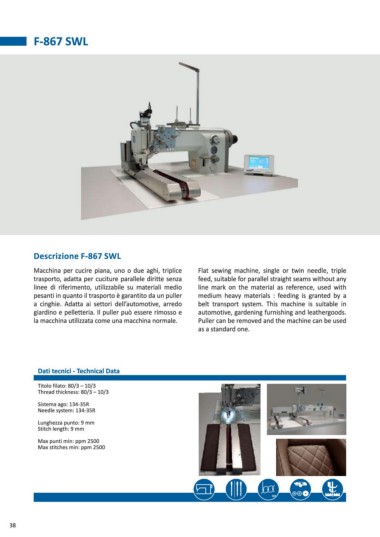

Page 38 - Catalogue FROMAC - Industrial Sewing Solutions
P. 38
- F-867SWL
Descrizione F-867 SWL
Macchina per cucire piana, uno o due aghi, triplice Flat sewing machine, single or twin needle, triple
trasporto, adatta per cuciture parallele diritte senza feed, suitable far parallel straight seams without any
linee di riferimento, utilizzabile su materiali medio line mark on the materiai as reference, used with
pesanti in quanto il trasporto è garantito da un puller medium heavy materials : feeding is granted by a
a cinghie. Adatta ai settori dell'automotive, arredo belt transport system. This machine is suitable in
giardino e pelletteria. Il puller può essere rimosso e automotive, gardening furnishing and leathergoods.
la macchina utilizzata come una macchina normale. Puller can be removed and the machine can be used
as a standard one.
Dati tecnici - Technical Data
Titolo filato: 80/3 - 10/3
Thread thickness: 80/3 -10/3
Sistema ago: 134-35R
Needle system: 134-35R
Lunghezza punto: 9 mm
Stitch length: 9 mm
Max punti min: ppm 2500
Max stitches min: ppm 2500
38
